Pumps 2000
38 mm double diapragm pump
SPECIFICATIONS |
MATERIALS OF CONSTRUCTION
FRASplas® NYLON : |
Pumps Body Parts |
POLYPROPYLENE : |
Pump Body Parts |
HYTREL® : |
Diaphragm |
SANTOPRENE® : |
Diaphragm (SPECIAL) |
TEFLON® : |
Ball Valve (SPECIAL) |
BUNA N® : |
O’ring seals & Ball Valve |
VITON® : |
O’ring seals (SPECIAL) |
STAINLESS STEEL : |
Shaft/Bolts/Washers etc... |
|
|
|

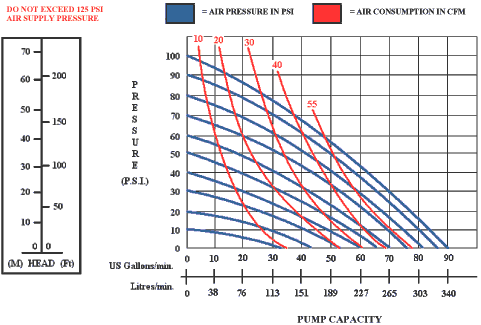

FLOW RATE : |
0-80 GPM (0-300LPM) |
|
AIR CONSUMPTION : |
55 CFM. Maximum |
OPERATING PRESSURE : |
100 PSI Air Supply Pressure (Recommended) |
|
PORT SIZE : |
1½ inch (Female BSP.) |
|
AIR INLET CONNECTION : |
1 inch (Female BSP.) |
|
AIR EXHAUST CONNECTION : |
¾ inch (Female BSP.) |
|
VERTICAL DELIVERY : |
50 Meters (Maximum Recommended) |
|
MAXIMUM SUCTION LIFT : |
8 Meters (Wet or Dry) |
|
MAXIMUM PARTICLE SIZE : |
12 mm spherical |
|
NOISE LEVEL : |
84dBA (1 meter in front of exhaust ) |
|
SHIPPING MASS : |
15 kg - Poly. 20 kg - Fras. |
|
PUMP MASS : |
12 kg - Poly. 17 kg - Fras. |
|
|
|
